EISA Award 2017-2018- Hi-END STEREO SYSTEM 2017-2018:Marantz PM10 & SA10

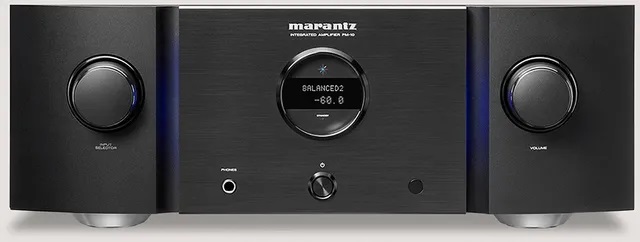

PM-10S1 is the Marantz flagship. This fully balanced amplifier has a dual mono design, and delivers a massive 2x200W into 8 Ohm.
The new reference class Integrated amplifier
Four switching power amplifier channels in bridged mode (two per channel) for maximum grip and drive
True Balanced Concept from input to speaker to realise ground-free signal management
Massive power: 200Wpc per channel into 8ohms, and 400Wpc into 4ohms
Easy driving of a wide range of speakers
Wide-ranging dynamic ability thanks to instant high-current power supply
Fully balanced throughout: both preamplifier and power amplifiers
Marantz Hyper Dynamic Amplifier Modules (HDAM) in preamp stage
Dual mono power amplifier configuration
Separate power supplies for preamplifier and control processor, and for each power amp channel
Discrete phono stage for moving coil and moving magnet cartridges in its own shielded case.
High-quality construction with double-layer chassis, 5mm thick aluminium top lid, solid aluminium front, copper plated chassis and high-purity copper speakers terminals
Double thickness copper PCB for the output section and main power supplies

General Information

Product Type: Amplifier
Manufacturer: Marantz
Product Line: Premium
Product Name Marantz PM-10

Package Contents
PM-10 Integrated Amplifier
Remote Control
Country of Origin: Japan
Environmentally Friendly: Yes

Technical Information

Minimum Frequency Response: 5 Hz
Impedance: 4 Ohm
Maximum Frequency Response:50 kHz
Total Harmonic Distortion THD 0%
Audio

RMS Output Power: 400 W
Audio Channels: 2
Physical Characteristics

Width 440 mm
Depth 453 mm
Weight Approximate 21.50 kg
Height 168 mm
Colour Black
Dimensions 168 mm (H): 440 mm (W): 453 mm (D)
Interfaces-Ports

Number of Analog Audio Inputs: 12
Power Description

Operating Power Consumption :270 W
