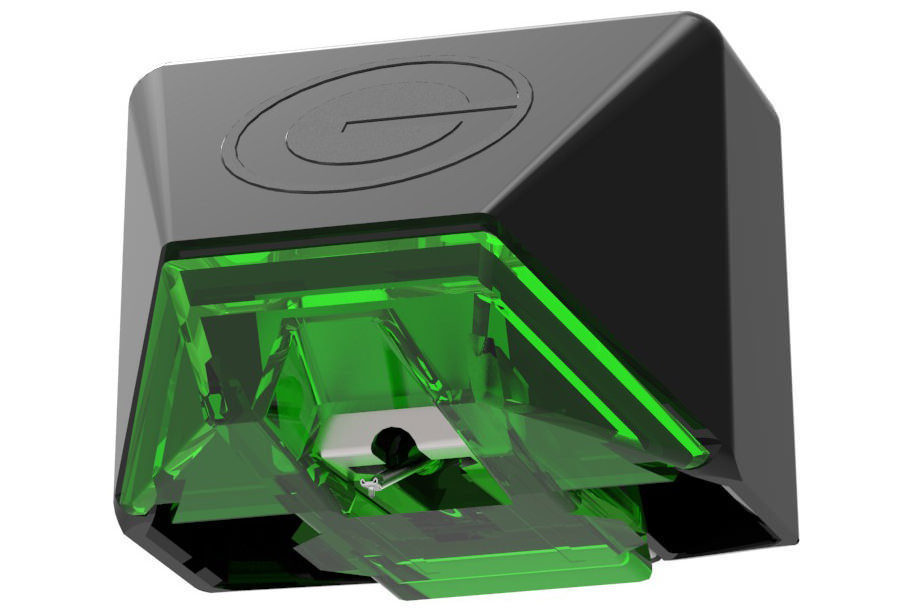

Goldring E2

Всички дози от Е серията са снабдени с Magnetic Duplex Technology™- генератор с двоен магнит, който по-точно проследява жлеба за запис, осигуряващ по-добро стерео разделяне и по-вълнуваща музикална сцена.

Model Variations

Colour: Green
Cantilever :Aluminium
Stylus profile: Spherical
Stylus radius: 0.6 mil

Transducer Characteristics

Frequency range: 20 Hz - 20 kHz
Channel balance: 1.5 dB at 1 kHz
Channel separation: >20 dB at 1 kHz
Sensitivity 3.5 mV (1 kHz @ 5 cm/sec)
Static compliance: 20 mm/N
Vertical tracking angle: 20°

Electrical Characteristics

Load resistance: 47 kOhm
Load capacitance: 100 - 200 pF
Internal inductance: 400 mH
Internal resistance: 410 Ohm

Mechanical Characteristics
Cartridge mass: 6.9 g
Fixing centres :12.7 mm (0.5 in)
Playing weight: 1.5 g - 2.5 g (2.0 g recommended)
